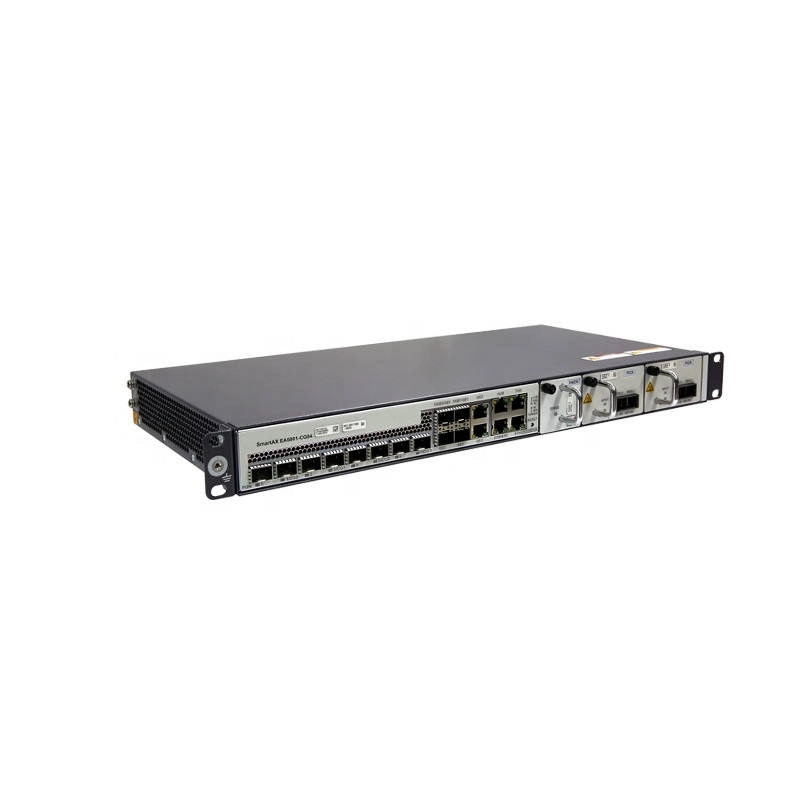

SmartAX EA5801 series EA5801-GP08 EA5801-CG04 mini olt

The EA5801 is a compact and low-density box-shaped OLT.  It provides GPON or XG-PON&GPON combo access, and supports passive optical LAN (POL) and fiber to the home (FTTH) solutions.



It carries all services over one fiber network, simplifying network architecture and reducing OPEX.  The EA5801 houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules.  The EA5801 supports two types of subracks: EA5801-GP08 and EA5801-CG04.

    oops...!

    no product data.

    Go to homepage
    Main-03
    Main-03
    Main-01
    Main-01
    Main-05
    Main-05

    Product Details

    1
    Light-Weight OLT, Adapting to Various Scenarios.
    SmartAX EA5801 series EA5801-GP08 EA5801-CG04 mini olt 8
    2
    PON Combo Technology.
    SmartAX EA5801 series EA5801-GP08 EA5801-CG04 mini olt 9
    3
    Rapid Deployment, Facilitating Installation and Saving Engineering Cost.

    Detail specification

    EA5801-CG04-AC Specification

    Dimensions(H*W*D)

    without mounting ears:43.6*442*222.3mm

    without IEC-Standard mounting ears:43.6*482.6*222.3mm

    without ETSI-Standard mounting ears:43.6*535*222.3mm

    Power Supply Mode

    AC power supply (dual for backup)

    Working Voltage Range

    AC power supply: 100v to 240v

    Rated Voltage

    AC power supply: 110v/220v

    Maximum Input Current

    AC power supply:2.5A

    Ambient Temperate

    -40℃ to +65℃ (normal  operation), minimum startup temperature:-25℃ *+65℃ indicates the temperature of the air intake vent of the service subrack

    Ambient  Humidity

    5% RH to 95%RH

    Atmospheric Pressure

    70kPa to 106kPa

    Altitude

    <4000m

    the air density varies with the altitude and will affect the heat dissipation of a device, the working environment temperature of the device varies with altitude

    MAC Address

    32768

    ARP Table

    16384

    GE Upstream Ports

    2 optical /electrical combo ports

    10GE/GE Upstream Ports

    2

    Number of Service Ports

    4*G-PON and GPON combo

    FAQ

    1
    Can you do OEM for us?
    Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
    2
    What about the lead time?
    If there's stock, we ship the goods within 7-10 working days. If it is out of stock, the lead time depends on the quantity of required ONT.
    3
    Can we get a lower price? Any Discount?
    Yes, We are manufacturers. Discount could be negotiated based on the quantity.
    4
    Shipping Methods
    EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.
    5
    What can you buy from us?
    Wireless Router,FTTH ONT,ONU,GPON,EPON.
    6
    How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment.
    7
    What should I do if there is any error incurred?
    We have strong technical support which can provide remote product debugging.
    8
    Can I do customization?
    Yes, we can provide One-stop customization service, low moq & quick customization, software, hardware, logo, even 1 piece can be customized.
    9
    What kind of customization you can do?
    Hardware & Software design, Apperance design and customize logo, Diversity in the choice of chips and mold appearance, etc.
