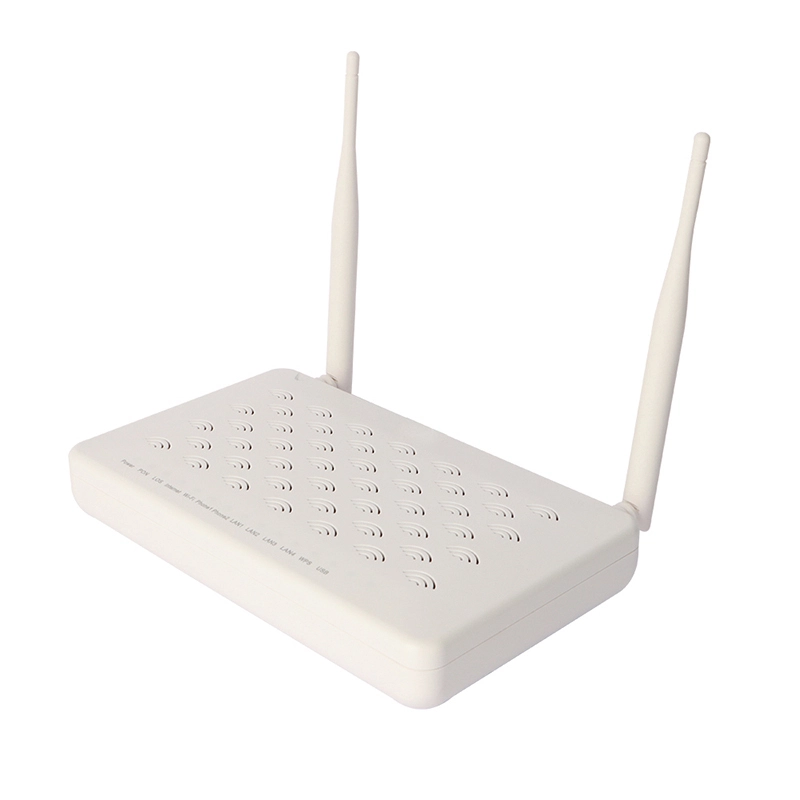

ZTE ZXHN F670L FTTH is a dual band Gigabit Premium triple-play GPON gateway. It comes with 4GE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.
ZXA10 C320 new generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capacity, single frame can provide 32-channel G/EPON ports and 96-channel P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 access on the same platform, and will also support TWDM-PON technology in the future; unified carrier voice, high-speed Internet, IPTV, traditional TDM and mobile backhaul services to achieve integration Access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 business boards, and saves board costs.
Подробная информация о продукте
Подробная спецификация
Бренд | ZTE |
Модель | F670L |
GPON-порт | 1x, SC/APC, 2448 Гбит/с в нисходящем направлении 1244 Гбит/с в восходящем направлении |
Абонентский интерфейс | Порт 4GE, 1x POTS, Wi-Fi (2,4 ГГц 802.11b/g/n 2×2, 5 ГГц 802.11a/n/ac 2×2, WPA/WPA2,WPS) |
Режимы | Мост, Маршрутизатор, Точка доступа |
Длина волны вниз по течению | 1490Нм |
Длина волны восходящего потока | 1310Нм |
Чувствительность | -28 дБм |
Потребление | 9 W |
Размеры | 205Х120Х29 мм (без внешней антенны и колодок) |
Рабочая температура и влажность | 0°C – 40°C, 5% – 95% |
Мощность | 12 IN DC |
Свойства GPON | 8x T-CONT, 32 порта GEM |
Служба поддержки | VLAN (802.1Q, 802.1P, 802.1ad), многоадресная рассылка, QoS, DHCP-сервер/клиент, NAT, двойной стек IPv6 |
Управление | Локальный (WEB), OMCI, TR069 |
