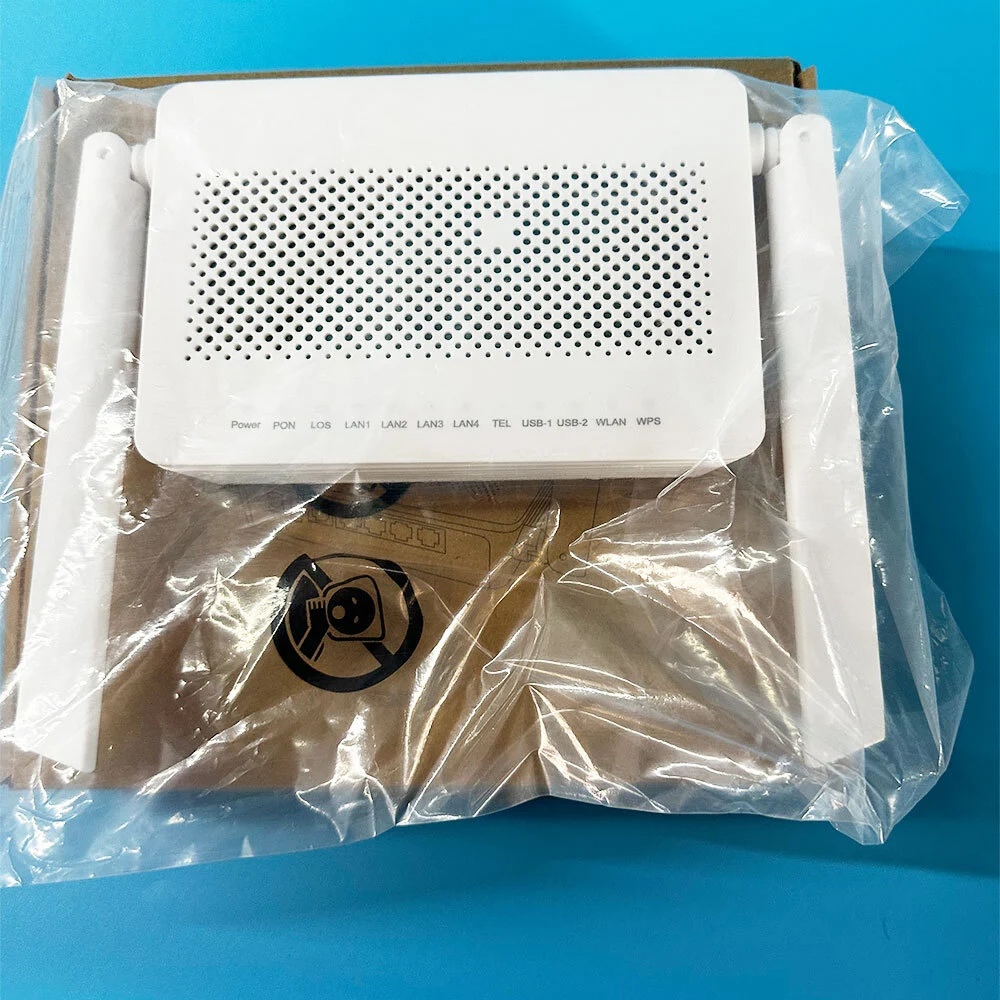

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 1

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 2

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 3

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 4

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 5

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 6

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB

GPON Port
• Class B+
• Receiver sensitivity: -27dBm
• Overload optical power: -8 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF) of G.984.5
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
• Type B (single-homing&dual-homing)

investigação

Escreva uma crítica

Product Details

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 7

Ethernet Port

Ethernet port-based VLAN tags and tag removal
1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
QinQ VLAN
Limit on the number of learned MAC addresses
MAC address learning
Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 8

POTS Port

Maximum REN: 4
G. 711A/μ, G.729a/b and G.722 encoding/decoding
T.30/T.38/G. 711 fax mode
DTMF
Emergency calls (with the SIP protocol)

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 9

USB

USB2.0
FTP-based network storage
File/Print sharing based on SAMBA
DLNA function

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 10

WLAN

IEEE 802.11 b/g/n (2.4G)
IEEE 802.11 a/n/ac (5G)
2 × 2 MIMO (2.4G&5G)
Antenna gain: 5 dBi
WMM/Multiple SSIDs/WPS
2.4G&5G concurrent
Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G)

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 11

Smart interconnection

Smart Wi-Fi coverage
SIP/H. 248 auto-negotiation
Any port any service
Parental control
L2/L3(IPv4) forwarding: 1G uplink, 1.3G downlink

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 12

Smart service

Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
Scheduled Wi-Fi shutdown

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 13

Smart O&M

IPTV video quality diagnosis
Rogue ONT detection and isolation from the OLT
Call emulation, and circuit test and loop-line test
PPPoE/DHCP simulation testing
WLAN emulation• eMDI

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 14

Layer 3 Features

PPPoE/Static IP/DHCP
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS/DNS server/DNS client
IPv6/IPv4 dual stack, and DS-Lite
Static/Default routes
Multiple services on one WAN port

HS8546V Xpon Onu Ont 1POTS 4GE 2.4G 5G Dual Band Wi-Fi 1USB 15

Multicast

IGMP v2/v3 proxy/snooping
MLD v1/v2 snooping

Detail specification

Dimensions (H x W x D)	30 mm x 173 mm x 120 mm (without external antenna and pads)
Operating temperature	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50 / 60 Hz
System power supply	11–14 V DC, 1.5 A
Static power consumption	5.3 W
Max. power consumption	18 W
NNI	XPON
UNI	1POTS+4GE+2.4G/5G Wi-Fi+1USB
Optical connector	SC/UPC, SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Installation mode	On the desk, or on the wall
Compliance certification	CE/WiFi

FAQ

Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

What about the lead time?

If there's stock, we ship the goods within 7-10 working days. If it is out of stock, the lead time depends on the quantity of required ONT.

Can we get a lower price? Any Discount?

Yes, We are manufacturers. Discount could be negotiated based on the quantity.

Shipping Methods

EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.

What can you buy from us?

Wireless Router,FTTH ONT,ONU,GPON,EPON.

How can we guarantee quality?

Aina esituotantonäyte ennen massatuotantoa;
Always final Inspection before shipment.

What should I do if there is any error incurred?

We have strong technical support which can provide remote product debugging.

Can I do customization?

Yes, we can provide One-stop customization service, low moq & quick customization, software, hardware, logo, even 1 piece can be customized.

What kind of customization you can do?

Hardware & Software design, Apperance design and customize logo, Diversity in the choice of chips and mold appearance, etc.
