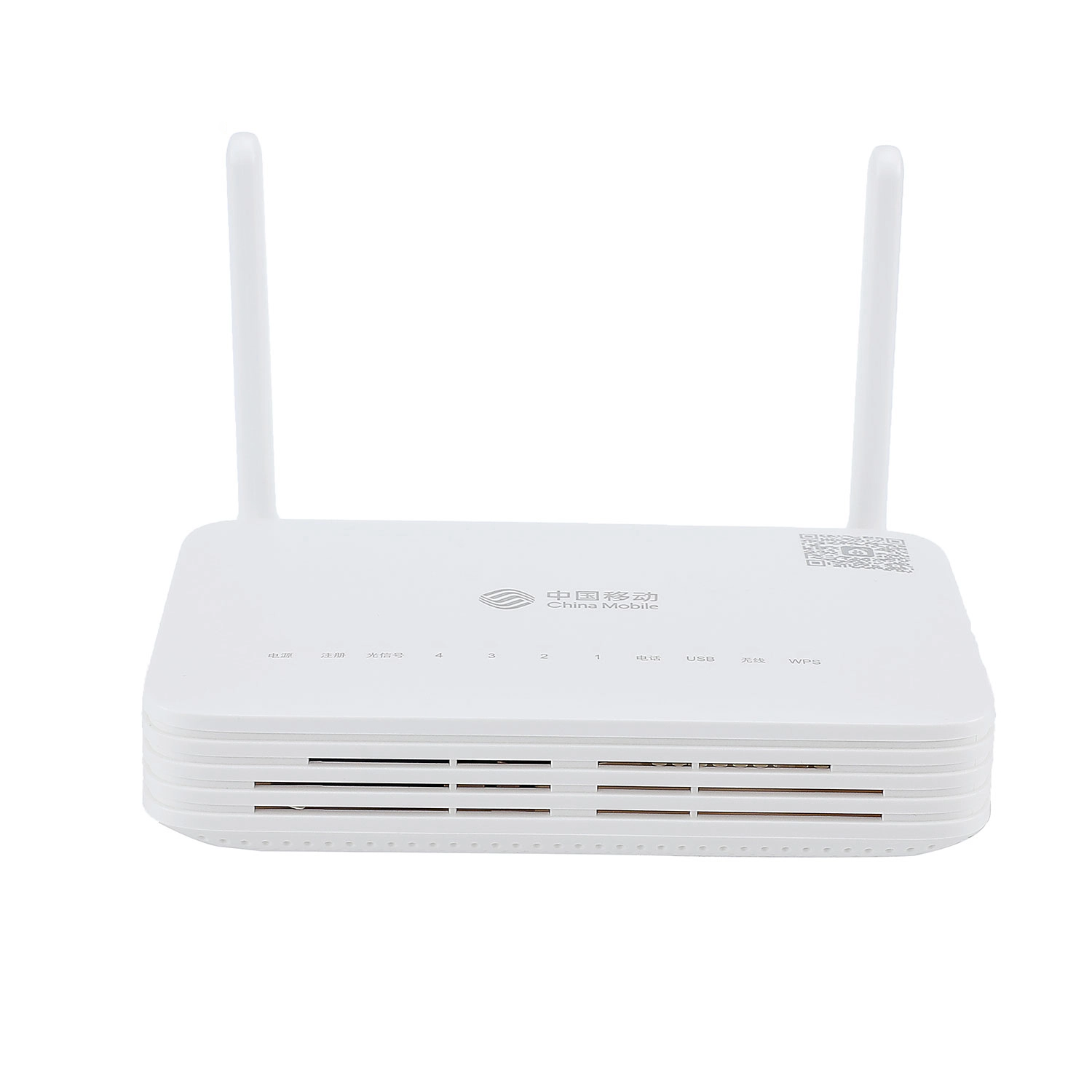

Optical Network Terminal New Shell HS8545M5 4FE Gpon Ont
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
2 (30)
1 (35)
3 (31)
Product Details
Smart interconnection
Smart Wi-Fi coverage
SIP/H. 248 auto-negotiation
Any port any service
Parental control
L2/L3(IPv4) forwarding: 1G uplink, 1.3G downlink
SIP/H. 248 auto-negotiation
Any port any service
Parental control
L2/L3(IPv4) forwarding: 1G uplink, 1.3G downlink
QoS
Ethernet port rate limitation
802.1p priority
SP/WRR/SP+WRR
Broadcast packet rate limitation
802.1p priority
SP/WRR/SP+WRR
Broadcast packet rate limitation
Power Saving
Indicator power saving
COC V5
COC V5
Detail specification
|
HS8545M5 Specification |
|
|
Dimensions (H x W x D) |
30 mm x 155 mm x 125 mm |
|
Operating temperature |
0°C to +40°C |
|
Operating humidity |
5% RH to 95% RH (non-condensing) |
|
Power adapter input |
100–240 V AC, 50/60 Hz |
|
System power supply |
11–14 V DC, 1 A |
|
Static power consumption |
3.1 W |
|
Max power consumption |
7.15 W |
|
NNI |
GPON |
|
UNI |
1POTS + 1GE + 3FE + 2.4G Wi-Fi |
|
Optical Connector |
SC/APC |
|
Indicators |
POWER/PON/LOS/LAN/TEL/WLAN/WPS |
|
Installation mode |
On the desk, or on the wall |
|
Compliance certification |
CE/Wi-Fi |
FAQ
1
Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
2
What about the lead time?
If there's stock, we ship the goods within 7-10 working days. If it is out of stock, the lead time depends on the quantity of required ONT.
3
Can we get a lower price? Any Discount?
Yes, We are manufacturers. Discount could be negotiated based on the quantity.
4
Shipping Methods
EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.
5
What can you buy from us?
Wireless Router,FTTH ONT,ONU,GPON,EPON.
6
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Always final Inspection before shipment.
7
What should I do if there is any error incurred?
We have strong technical support which can provide remote product debugging.
8
Can I do customization?
Yes, we can provide One-stop customization service, low moq & quick customization, software, hardware, logo, even 1 piece can be customized.
9
What kind of customization you can do?
Hardware & Software design, Apperance design and customize logo, Diversity in the choice of chips and mold appearance, etc.
