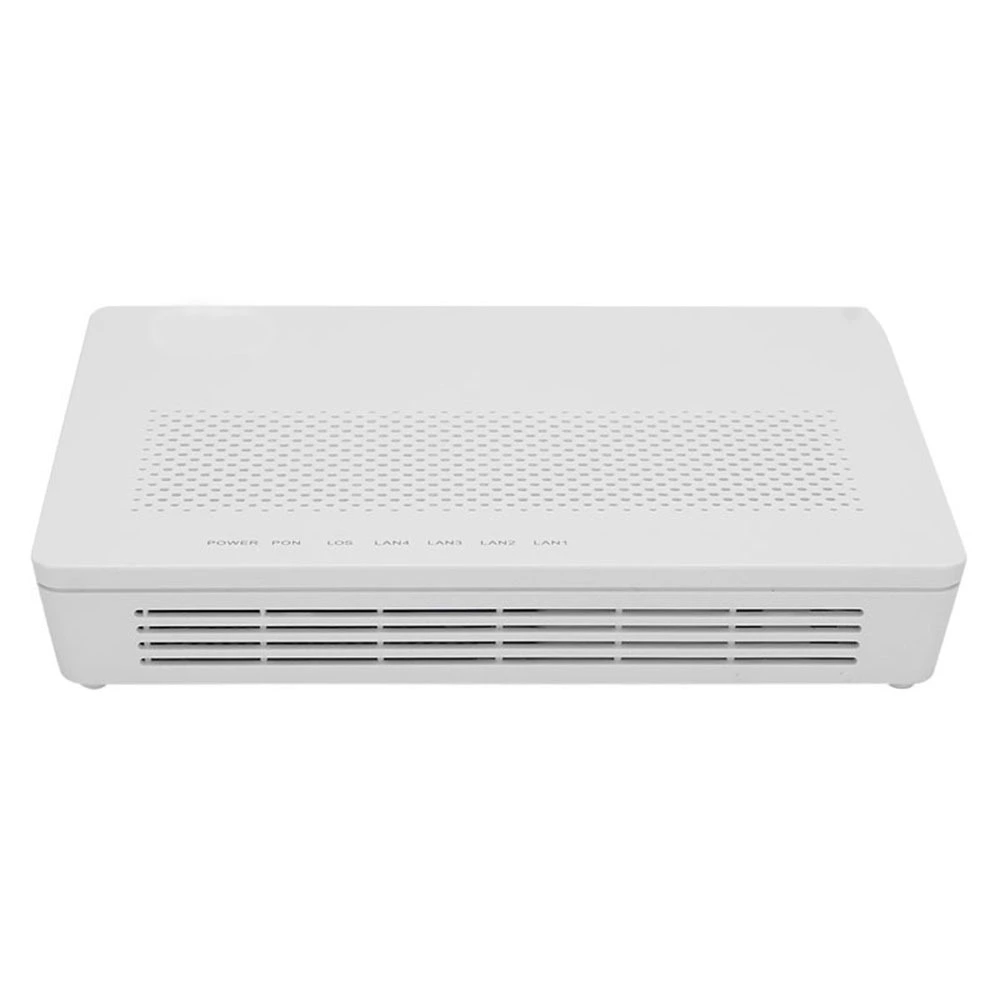

Optical Network Terminal New Shell HG8540M 4FE Gpon Ont
HG8540M is an Optical Network Terminal (ONT) used in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. It provides 4FE+1POTS ports. The HG8540M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8540M provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Product Details
1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
QinQ VLAN
Limit on the number of learned MAC addresses
MAC address learning
Transparent transmission of IPv6 packets at Layer 2
Active/Passive rogue ONT detection and isolation
PPPoE/DHCP simulation testing
802.1p priority
SP/WRR/SP+WRR
Broadcast packet rate limitation
Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Detail specification
|
HG8540M Specification |
|
|
Dimensions (H x W x D) |
115 mm x 95 mm x 28mm |
|
Operating temperature |
0°C to +40°C |
|
Operating humidity |
5% RH to 95% RH (non-condensing) |
|
Power adapter input |
100–240 V AC, 50/60 Hz |
|
System power supply |
11–14 V DC, 1 A |
|
Static power consumption |
3.1 W |
|
Max power consumption |
7.15 W |
|
NNI |
GPON |
|
UNI |
1POTS +4FE + 2.4G Wi-Fi |
|
Optical Connector |
SC/UPC |
|
Indicators |
POWER/PON/LOS/LAN/TEL/WLAN/WPS |
|
Installation mode |
On the desk, or on the wall |
|
Compliance certification |
CE/Wi-Fi |
