OEM & ODM Services for All Kinds fiber optic products.
· Variable-length OMCI messages
· Active/Passive rogue ONT detection and isolation
· PPPoE/DHCP simulation testing
· Ethernet port rate limitation
· 1p priority
· SP/WRR/SP+WRR
· Broadcast packet rate limitation
· Flow mapping based on the VLAN ID,port ID, or/and 802.1p
· Indicator power saving
· Power consumption reduction of idle components in power-saving state
· COCv4
· MAC address filtering
· OMCI/Web UI
· Dual-system software backup and rollback
· 1ag Ethernet OAM
· Optical link measurement and diagnosis
· Loopback check Multicast
· IGMP v2/v3 snooping
· MLD v1/v2 snooping
Product Details
Detail specification

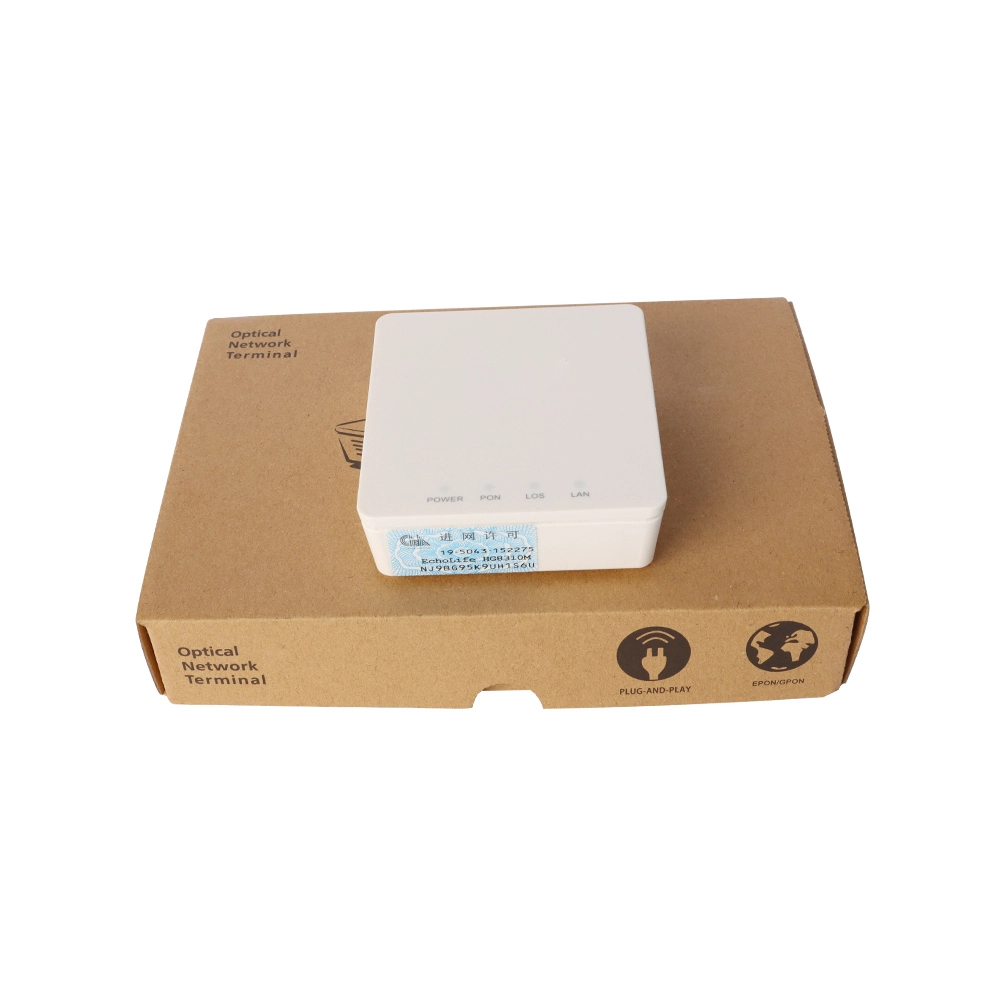

HG8310M Specification | |
Dimensions (H x W x D) |
78mm x 90 mm x 27mm |
Operating temperature |
0°C to +40°C |
Operating humidity |
5% RH to 95% RH (non-condensing) |
Power adapter input |
100–240 V AC, 50/60 Hz |
System power supply |
11–14 V DC, 1 A |
Static power consumption |
3.1 W |
Max power consumption |
7.15 W |
NNI |
GPON |
UNI |
1POTS + 1GE + 2.4G Wi-Fi |
Optical Connector |
SC/UPC |
Indicators |
POWER/PON/LOS/LAN/TEL/WLAN/WPS |
Installation mode |
On the desk, or on the wall |
Compliance certification |
CE/Wi-Fi |
