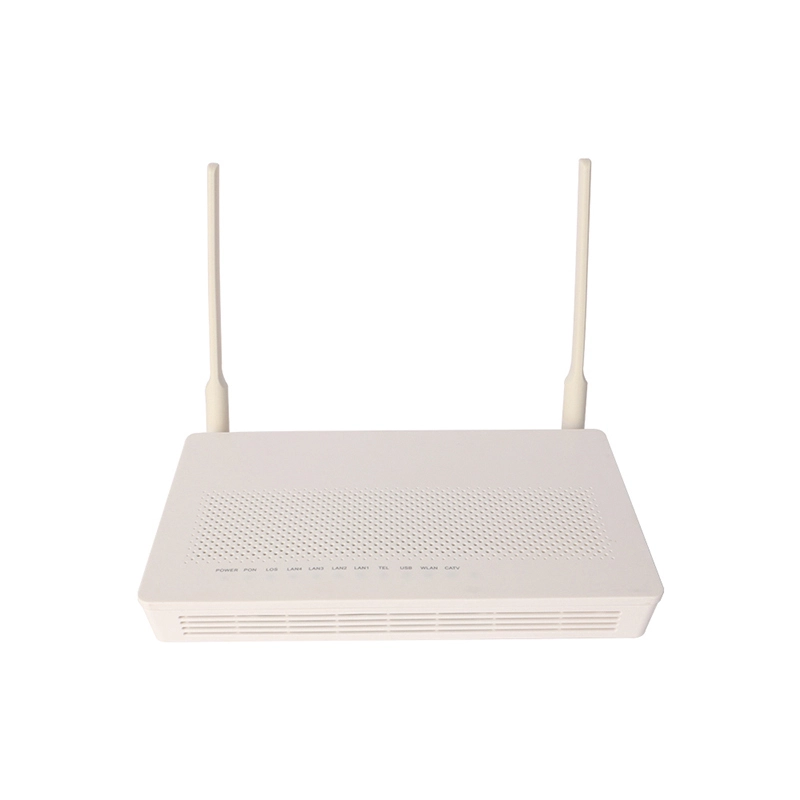

Gigabit-Capable PON Ont EG8143A5 1GE 3FE 1TEL 1USB CATV RF WIFI Gigabit-Capable PON Onu
The EG8143A5 is a routing-type Optical Network Terminal (ONT) — an integral part of Huawei’s all-optical access solution — that uses Gigabit-capable Passive Optical Network (GPON) technology to implement ultra-broadband access for users.
With high forwarding performance ensuring a consistent user experience for voice, data, and High Definition (HD) video services, and future-oriented service support capabilities, EG8143A5 helps enterprises construct the all-optical access solutions deployed on next generation campuses.
Receiver sensitivity: –27 dBm
Overload optical power: –8 dBm
Type B single-homing
Type B dual-homing (supported in Layer 2 forwarding)
Limit on the number of learned MAC addresses
MAC address learning
G.711A/μ, G.729a/b, and G.722 encoding/decoding
T.30/T.38/G. 711 fax mode
DTMF
Emergency calls (complies with the SIP protocol)
Antenna gain: 2 dBi
WMM
Multiple SSIDs
WPS
Air interface rate: 300 Mbit/s
Detail specification
|
Model |
EchoLife EG8143A5 |
|
Dimensions (H x W x D) |
34 x 175 x 115 mm |
|
Weight (Without power adapter) |
Approximately 235 g |
|
Operating Temperature |
0–40°C |
|
Operating Humidity |
5%–95% RH (non-condensing) |
|
Power Adapter Input |
100–240 V AC, 50/60 Hz |
|
UNI |
1 x GE, 3 x FE, 1 x POTS, 1 x Wi-Fi (2.4G), and 1 x CATV |
|
NNI |
1 x GPON |
|
Maximum Power Consumption* |
8.2 W |
|
Maximum PoE Output Power |
NA |
|
Surge Protection |
GE port: common mode 4 kV; differential mode 0.5 kV |
|
Surge Protection |
AC power supply: common mode 6 kV; differential mode 6 kV |
|
Desktop |
|
|
Compliance Certification |
CE |
