OEM & ODM Services for All Kinds fiber optic products.

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 1

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 2

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 3

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 4

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 5

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 6

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 7

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 8

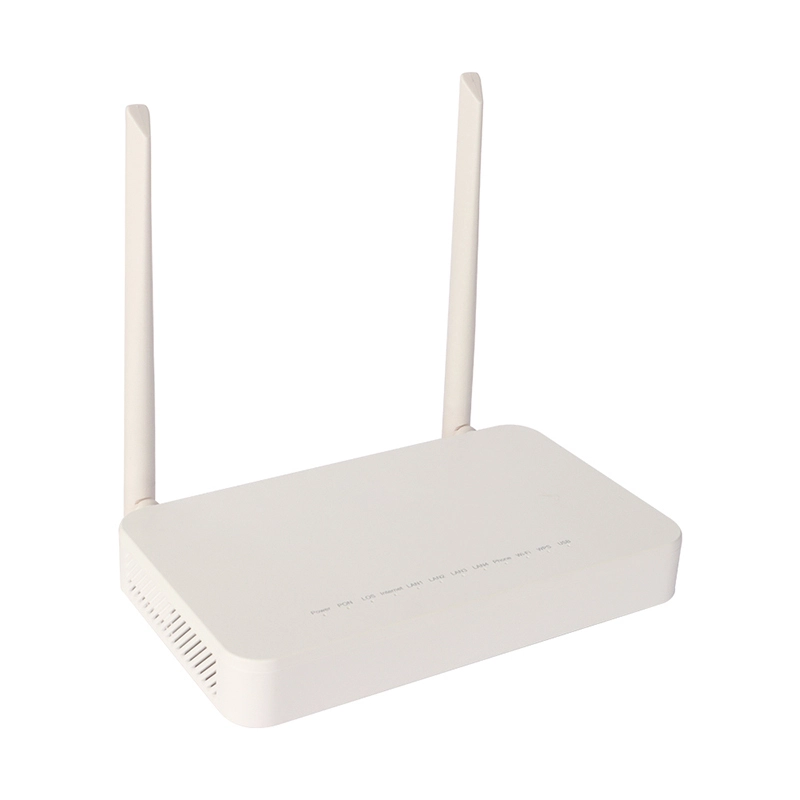

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router

F670L FTTH is a dual band Gigabit Premium triple-play GPON gateway. It comes with 4GE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.

ZXA10 C320 new generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capacity, single frame can provide 32-channel G/EPON ports and 96-channel P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 access on the same platform, and will also support TWDM-PON technology in the future; unified carrier voice, high-speed Internet, IPTV, traditional TDM and mobile backhaul services to achieve integration Access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 business boards, and saves board costs.

Inquiry

Write a Review

F670L多灯详细页_02

F670L多灯详细页_01

F670L多灯详细页_03

Product Details

Flexible Management Mode

The F670L can be managed by two ways: one is complete OMCI complying with ITU-T G.988, the other is OMCI plus TR-069 complying with BBF TR-142 framework. Service providers can choose their preferred ways to manage the device.

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 12

Quality of Service (QoS)

The QoS features of the F670L enable service providers to design QoS policies and prioritize mission-critical services such as IPTV and VoIP freely based on their individual service plans. So, service providers could deliver real multi-play applications to users and increase network efficiency.

Gigabit PON Optical Terminal F670L with 4GE Port, 2.4G&5G Wifi+ 1POTS GPON ONT router 13

Highly Reliable Feature

Dual-Band concurrent Wi-Fi mode so that its Wi-Fi speed can reach up to 1.2Gbps, consisting of 300Mbps (802.11n 2×2 @ 2.4GHz) and 866Mbps (802.11ac 2×2 @5GHz). The dual image ensures uninterrupted services during software download or upgrade, thereby enhancing software reliability. The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the POTS port, and 1.5 kV for the Ethernet ports.

Detail specification

Model	F670L
GPON Port	1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Subscriber interface	4GE Port, 1x POTS, WiFi (2.4 GHz 802.11b/g/n 2×2, 5 GHz 802.11a/n/ac 2×2, WPA/WPA2,WPS)
Modes	Bridge, Router, AP
Wavelength downstream	1490nm
Upstream Wavelength	1310nm
Sensitivity	-28 dBm
Consumption	9 W
Dimensions	205X120X29 mm (without external antenna and pads)
Working temperature and humidity	0°C – 40°C, 5% – 95%
Power	12 IN DC
GPON properties	8x T-CONT, 32 GEM ports
Support	VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management	Local (WEB), OMCI, TR069

FAQ

Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

What about the lead time?

If there's stock, we ship the goods within 7-10 working days. If it is out of stock, the lead time depends on the quantity of required ONT.

Can we get a lower price? Any Discount?

Yes, We are manufacturers. Discount could be negotiated based on the quantity.

Shipping Methods

EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.

What can you buy from us?

Wireless Router,FTTH ONT,ONU,GPON,EPON.

How can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment.

What should I do if there is any error incurred?

We have strong technical support which can provide remote product debugging.

Can I do customization?

Yes, we can provide One-stop customization service, low moq & quick customization, software, hardware, logo, even 1 piece can be customized.

What kind of customization you can do?

Hardware & Software design, Apperance design and customize logo, Diversity in the choice of chips and mold appearance, etc.
