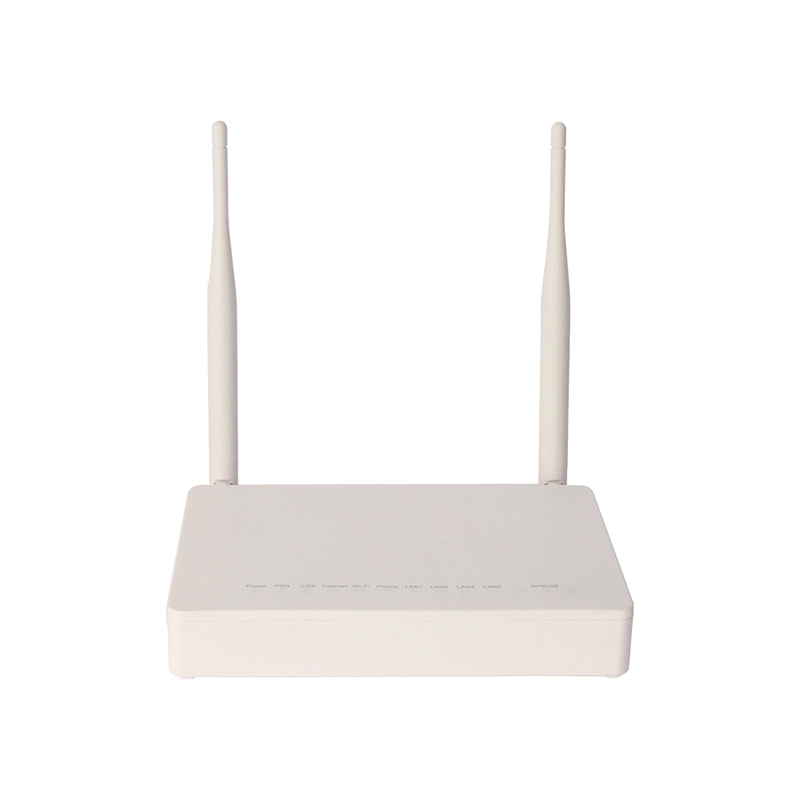

Gigabit Gpon Terminal Onu F660 V8 1Ge+3Fe+1Port+WIFI Optical Network Device

660 V8.0 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.  F660 provides an GPON interface to connect OLT with an ODN.  It offers a new choice for operators to deliver FTTH access.



POL (Passive Optical LAN) is a new type of LAN networking solution based on PON technology, which combines different services such as data, voice, video, and wireless access into one optical fiber network, inheriting the PON network With the advantages of large bandwidth, high reliability, low latency, flatness, easy deployment, and easy management, it is the best choice for different scenarios such as smart parks, commercial buildings, enterprises, campuses, hotels, governments, and finance.

    oops...!

    no product data.

    Go to homepage
    F660-V8 (10)
    F660-V8 (10)
    F660-V8 (9)
    F660-V8 (9)
    F660-V8 (11)
    F660-V8 (11)

    Product Details

    1
    Ultra-wide: one deployment, continuous upgrade of network capacity
    Each PON port of the POL network has a bandwidth of up to 10G. When there is a higher bandwidth requirement, the optical fiber does not need to be replaced, only the equipment or optical modules at both ends need to be replaced, simplifying the upgrade steps and saving upgrade costs.
    Simplified: energy saving and land saving, simple operation and maintenance
    Gigabit Gpon Terminal Onu F660 V8 1Ge+3Fe+1Port+WIFI Optical Network Device 12
    2
    The POL solution can reduce the computer room by about 80% and can achieve energy savings of up to 60%.
    The POL network has a simple hierarchy, which is convenient for maintenance and management, reduces failure points, and improves network reliability. Network peration and maintenance expenses can be reduced by more than 60%.
    Convergence: One optical fiber carries all services
    Gigabit Gpon Terminal Onu F660 V8 1Ge+3Fe+1Port+WIFI Optical Network Device 13
    3
    A set of POL network can provide 1000M Ethernet port, POTS, CATV, Wi-Fi, RS232/485 serial port, PoE port, time synchronization interface, etc. There is no need to establish multiple sets of networks to carry multiple services.
    Security: Provide multiple security protection mechanisms
    The POL network effectively avoids electromagnetic interference, electromagnetic leakage and other problems, and supports AES128 encryption to ensure the safety of data optical fiber transmission.

    Detail specification

    Model

    F660 V8.0

    Optical port

     1 x GPON interface

    Transmission Distance

    0-20KM

    Transmit rate

     2.488Gbps downstream; 1.244Gbps upstream

    User-Network Interface

    1GE +3FE port

    1 x Wi-Fi interface

    1 x USB host interface

    1 x POTS interfaces

    Wavelength

    Receiving: 1480~1500 nm  Transmitting: 1290~1330 nm

     Receiving Sensitivity

    -28dBm

    Transmitting Optical Power

     0.5~5dBm

     Power consumption

    <10W

     Working temperature:

    0oC ~ 40oC

    Working humidity

    5% ~ 95%

     Weight

    380G

    Power supply

    12V DC

    FAQ

    1
    Can you do OEM for us?
    Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
    2
    What about the lead time?
    If there's stock, we ship the goods within 7-10 working days. If it is out of stock, the lead time depends on the quantity of required ONT.
    3
    Can we get a lower price? Any Discount?
    Yes, We are manufacturers. Discount could be negotiated based on the quantity.
    4
    Shipping Methods
    EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.
    5
    What can you buy from us?
    Wireless Router,FTTH ONT,ONU,GPON,EPON.
    6
    How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment.
    7
    What should I do if there is any error incurred?
    We have strong technical support which can provide remote product debugging.
    8
    Can I do customization?
    Yes, we can provide One-stop customization service, low moq & quick customization, software, hardware, logo, even 1 piece can be customized.
    9
    What kind of customization you can do?
    Hardware & Software design, Apperance design and customize logo, Diversity in the choice of chips and mold appearance, etc.
